.This is the original Schak, with old rig´s and PC´s from last century ...

I start my activity as CT1FAK in 1993 with this equipment.

You can see a old JRC and a Sommerkamp

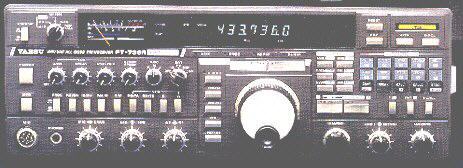

This is my actual rigs, a FT-1000, a IC-706 MKII and a Yaesu FT-736R.

A have also a old FT-23 R and some VHF and UHF commercial equipment on packet, a Winradio Scanner and more old and classical rigs.

The antenna setup

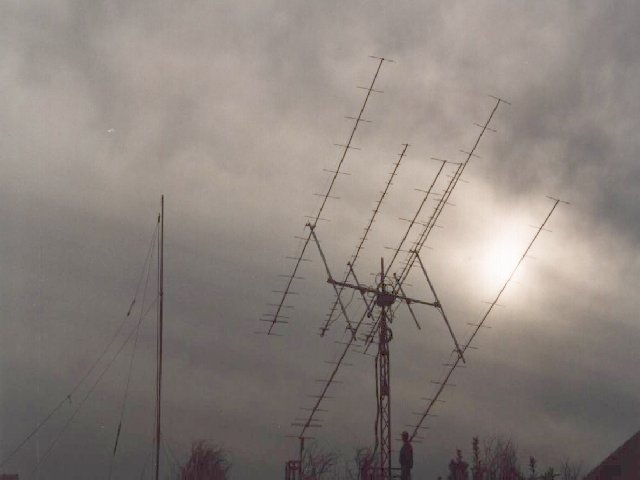

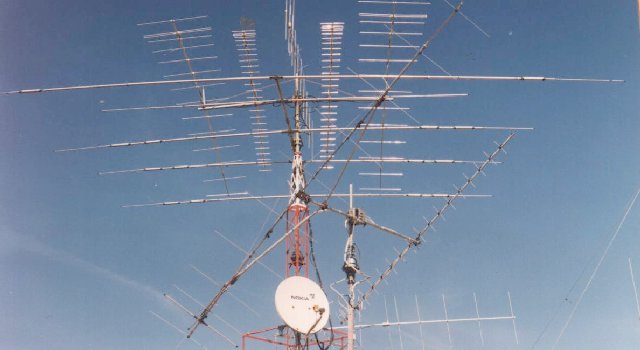

For 144 Mhz i use 4 DL6WU homemade yagis with 9 mts long, and on 432 Mhz i use 2 DL6WU yagis with 7 mts long. I have now 4 DL6WU yagis with 8 mts long to put in the meedle of the 144 Mhz array, and, in workbench 16 long yagis to put on the end of my farm.

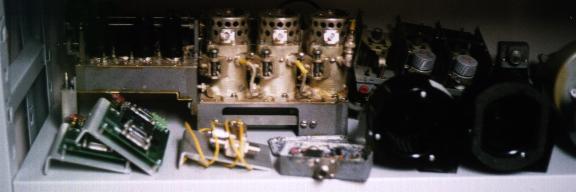

Sattelite antennas and other HF stuff in recent past ...

And the actual photos of my station :

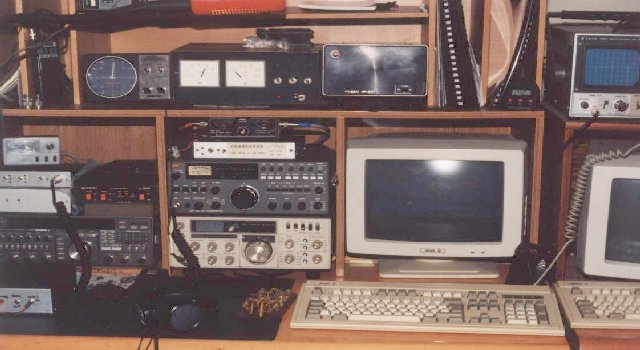

The equipment during AO-10 QSO´s ...

Another view ...

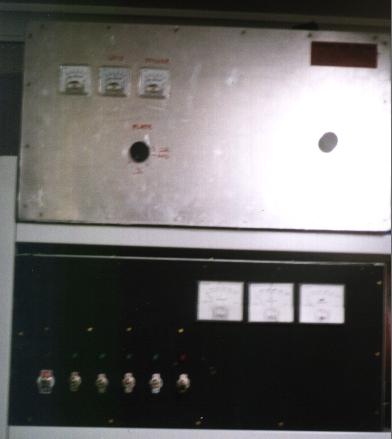

On the left, my 1 KW linear amplifier, and on the left, a view of the Ham "work office"



On the left, the spares for my new 1.2 Ghz PA, and on the right, some microwave stuff ...

The construction desk ...



Homestation setup :

HF

160 to 10 mts - FT-1000D rig

160 to 2 mts - IC 706 MKII rig

TH5 MKII 10-15-20 mts yagi

2BDQ for 40/80 mts

a sloop for 160 mts

VHF

I8CVS 0.3 dB NF 16 dB gain cavity pre-amplifier

DJ8ES transverter

FT-1000D on RX - Bandwidth from 2.4 Khz to 50Hz

FT-736R on TX

200W solid state PA

1000W 2x4CX250R PA homemade

Automatic TX/RX sequencer homemade

4 x 15 elements DL6WU yagis

G-2000RC yaesu azimuth rotor

homemade elevation rotor (full elevation)

UHF

FT-736R on TX

100W solid state PA

400W 4CX250R PA (under construction)

DJ9BV cavity pre-amplifier 0.4 dB NF 15dB gain (MGF-1302)

DJ8ES 432-435 Mhz transverter

FT-1000D on RX

SHF

1.2Ghz FM ATV with CT4RK emiter

homemade RX system

1.2 Ghz D.EastMicrowave transverter

1+2 x 3CX100A7 PA (under construction)

2.4 Ghz D.E.M.I transverter

CT1DMK RX converter for SAT mode S

S.E.T.I. 1.4 Ghz RX converter

Full mobile and compact setup (rigs+antennas) for P3D all modes (under construction)



DIGITAL MODES

MFJ 1278

TNC2

CW+Packet Radio+RTTY+AMTOR+SITOR+FEQ+FAX+SSTV

High Speed CW for metteor scatter

TX : OH5IY software

RX : 9A4GL software



Scores :

(this info will be concluded and updated soon)

160 mts :

HF bands :

SAT : 98 countrys



50 Mhz : 240 grid squares

Tropo : ____ MS : ___ ES : ___ DXCC : ______ coutrys



144 Mhz : 162 grid squares

Tropo : ____ MS : ___ ES : ___ EME : ___ DXCC : ______ coutrys



432 Mhz : 35 grid squares

Tropo : 35 DXCC : ______ coutrys



1.2 Ghz : 2 grid squares

24 Ghz : 1 grid square (TKX to CT1DMK)
