I use a double zepp antenna, 2x20m long and 10m high at the apex. It's my main antenna.
A 20m ladder line brings HF to a balanced tuner, MFJ-974H.

This antenna allows me to be on all bands from 80m to 6m. For the the top band, the antenna is not high enough, and performance are not famous, except for local qso.
The small white spot near the apex is the moon in its first quarter.

At the right of the mast, a UHF-VHF Diamond vertical.

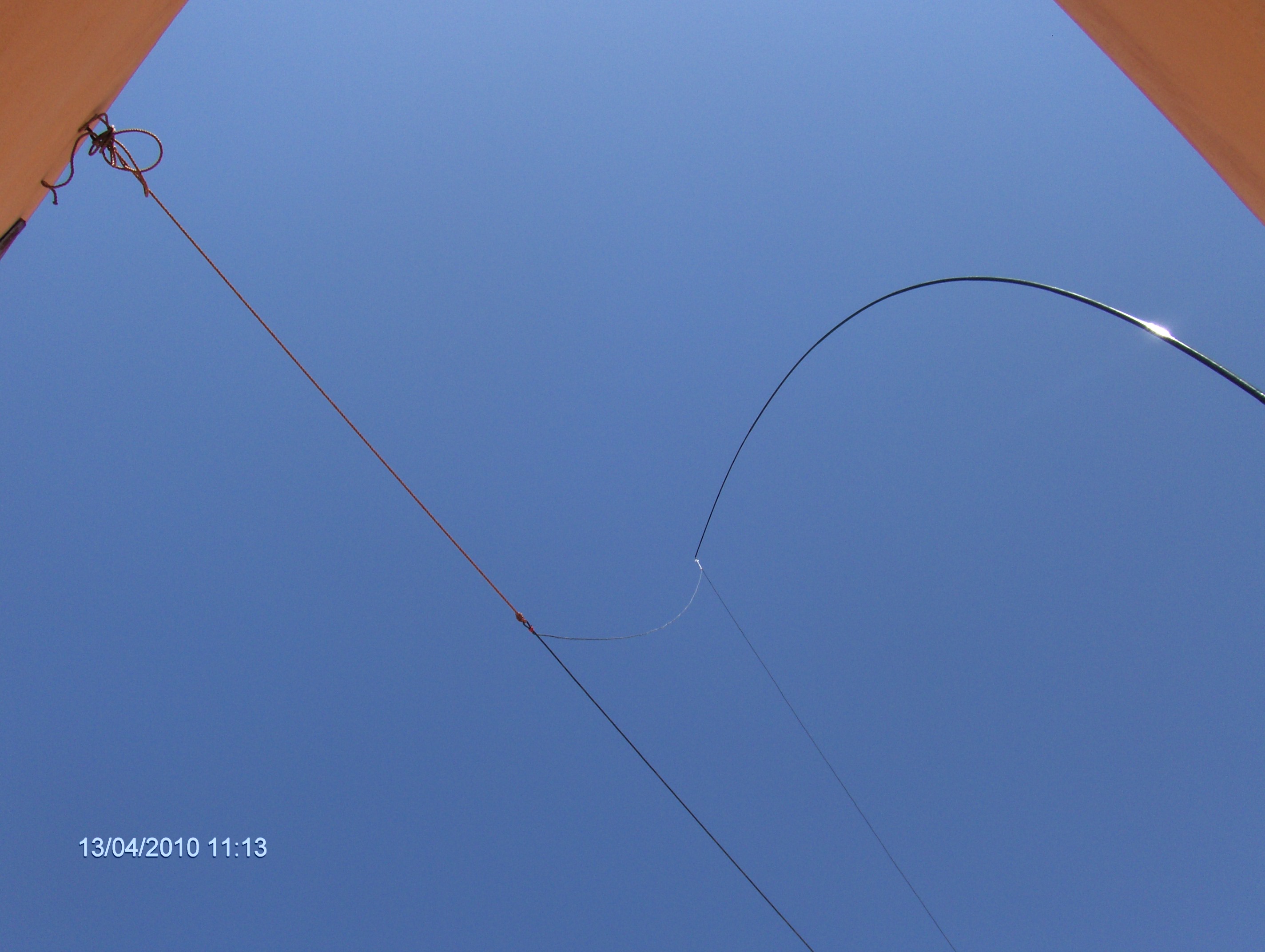

The following pictures show a portable Delta loop, 3x8m long. I use it when in portable conditions

It is fed at a corner with a remote ATU (SGC-237).

Many dx contact were made at QRP power, from 40m to 6m.
