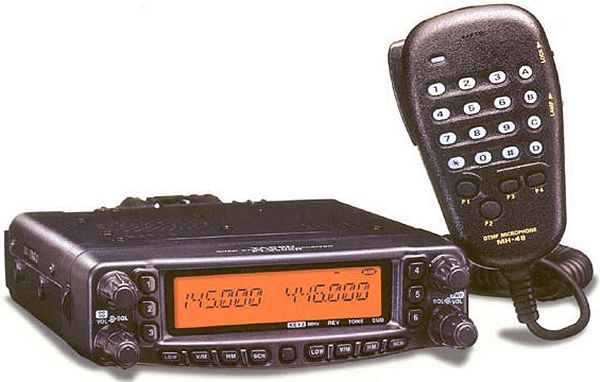

Yaesu FT-8900R
| Frequency range: | TX: 28-29.7 / 50-54 / 144-146 / 430-440 MHz (Europe)
TX: 28-29.7 / 50-54 / 144-148 / 430-450 MHz (USA)
RX: 28-29.7 / 50-54 / 108-180 / 320-480 / 700-958 MHz (Cellular blocked in the US) |
| Mode: | TX: FM
RX: AM/FM |
| RF Power output: | Hi: 50/50/50/35 W, Mid: 20/20/20/20 W, Lo2: 10/10/10/10 W, Lo1: 5/5/5/5 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image response: | N/A |
| Voltage: | 13.8 VDC +/- 15% |
| Current drain: | RX: 0.5-? A
TX: Max 8.5 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 140*42*168 mm |
| Weight: | 1 Kg |
| Manufactured: | 2002-200x |
| Other: | ARTS, CTCSS, DCS and WIRES-compatible (internet connection).
800 memories. 1200/9600 bps packet jack. Twin RX
Will be available fall 2002. |
