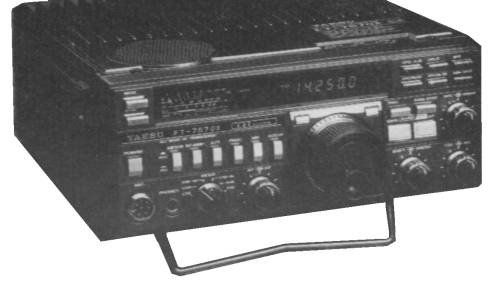

Yaesu FT-757GX
| Frequency range: | TX: 10-160 m + WARC
RX: 0.5-30 MHz |
| Mode: | All-mode |
| RF Power output: | 100 W (25 W AM) |
| Voltage: | 13.5 VDC |
| Current drain: | RX: Max 2 A
TX: Max 20 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 238*93*238 mm |
| Weight: | 5.2 Kg |
| Manufactured: | 1983-19xx |
| Other: | |
| Related documents: | |
|
