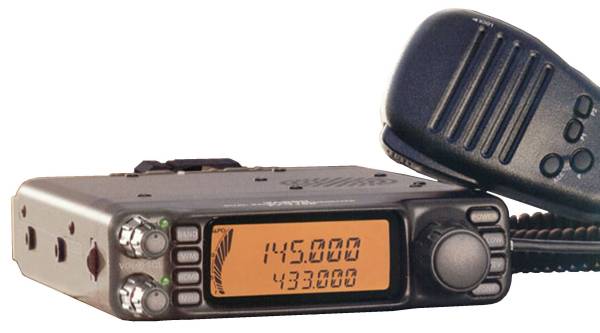

Yaesu FT-7100M
| Frequency range: | TX: 144-146 / 430-440 MHz (Europe)
TX:144-148 / 430-450MHz (USA)
RX: 108-180 / 320-480 / 810-1000 MHz * |
| Mode: | TX: FM
RX: AM/FM |
| RF Power output: | Hi: 50/35 W, Mid1: 20/20 W, Mid2: 10/10 W, Lo: 5/5 W |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max 0.5 A
TX: Max 11.5 A |
| Impedance: | 50 ohms, SO-239 (N-type for Europe) |
| Dimensions (W*H*D): | 140*38*166 mm |
| Weight: | 1.0 Kg |
| Manufactured: | Japan, 2001-200x |
| Other: | 262 memories. Detachable head. CTCSS & DCS
ARTS. 9K6 packet ready. Twin RX. * Cellular blocked in the US |
| Extras: | |
|
