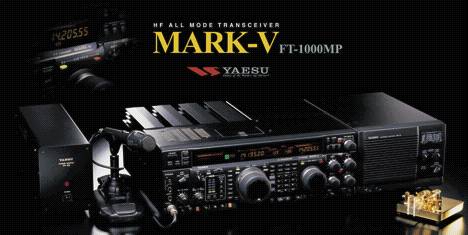

The new Yaesu FT-1000MP Mark-V represents the crowning achievement
in Yaesu's HF transceiver design history. A unique blend of analog and
digital technology, the Mark-V is based on the concept of rigorous filtering
in all stages of the receiver and transceiver. A high speed antenna tuner is built in. This radio includes
a hand mic. (Note: Some items shown in the above image are optional).
Yaesu also now offers an optional 6 meter transverter for the Mark V
called the FTV-1000
The Mark-V introduces five all-new features
to the FT-1000 Series:
*IDBT (Interlocked Digital
Bandwidth Tracking), which matches the receiver passbands of
the 8.2 MHz IF, 455 kHz IF and DSP systems.
*VRF (Variable RF Front-end
Filter), providing a high-Q "Preselector" system protecting
the receiver's front end.
*Class A PA Operation,
providing extraordinary SSB signal purity.
*200-Watt MOS FET Final
Amplifier, giving you the extra drive for your linear.
* Integrated
Shuttle Jog Control, combining the access buttons for IDBT
and VRF with the convenient frequency control of Yaesu's exclusive Shuttle
Jog.
Click here for specifications.
|
Features
|
- Dual Receive
- Class A PA Operation
- Integrated Shuttle Jog Control
- 10 Pole Collins Mechanical Filter
- Manual and DSP Auto Notch
|
- 200 Watts Power!
- Separate FP-29 Power Supply
- Enhanced DSP
- 13 Tuning Steps
- Manual and Auto AGC
|
Options | Options With Photos
| Order # |
Item |
Description |
| #3199 |
DVS-2 |
Digital voice recorder. |
| #1262 |
FH-1 |
Wired remote keypad. |
| #1219 |
FTV-1000 |
Six Meter Transverter 200 watts. |
| #0287 |
MD-100A8X |
Desktop microphone. |
| #1359 |
MD-200A8X |
Ultra fidelity desktop microphone. |
| #1789 |
SP-8 |
External speaker with filter. |
| #0588 |
TCXO-6 |
Temperature compensated crystal oscillator for high stability
(?.5 ppm). |
| #3178 |
YF-110CN |
Filter 250 Hz CW (455 kHz IF) [Main receiver]. |
| #0758 |
YF-110SN |
Filter 2 kHz SSB (455 kHz IF) [Main receiver]. |
| #2869 |
YF-114CN |
Filter 250 Hz CW (8.2 MHz IF) [Main receiver]. |
| #1681 |
YF-114SN |
Filter 2 kHz SSB (8.2 MHz IF) [Main receiver]. |
| #2194 |
YF-115C |
Collins mechanical filter 500 Hz CW [Main/Sub receiver]. |
| #2342 |
YH-77STA |
Stereo headphones. |
|
