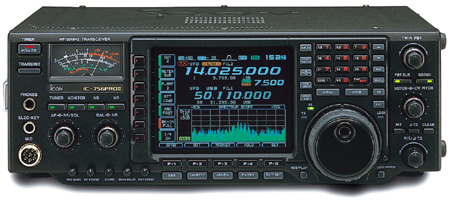

The ICOM 756 Pro II covers all nine HF ham bands plus 6 meters
(receive from 30 kHz - 60 MHz). The high resolution 4.9 inch TFT color dot matrix LCD display provides more
operating information than you've ever had before, including a spectrum
scope (± 12.5, ± 25, ± 50 or ± 100 kHz). You can even select from seven
different display . The Pro features a 32-bit floating point DSP
Digital IF filter with 41 selectable bandwidths, microphone equalizer,
manual notch function, twin peak audio filter, digital twin pass band
tuning (PBT), all mode, including PSK31, and much more. No additional
filters or high stability crystal oscillators are available or needed.
The filters are the sharpest - more selective than any crystal or mechanical
filters. The selectivity lets you pull out weak signals like never before.
Your transmit audio is fully configurable with the sophisticated 121
position microphone equalizer. A powerful RF speech compressor is great
for breaking through noise to grab that DX contact. This radio includes
an HM-36 hand mic. Make the ProII the heart of your complete ICOM station!
Please see page 70 of the February 2002 QST for a complete
review of this amazing radio.
Click here for specifications.
|
Features
|
- Voice Keyer
- 101 Memories
- RIT/XIT
- Noise Blanker
- Multiple Display Formats
- Realtime Spectrum Display
- Twin Digital PBT
- Voice Recorder
- 100 Watt Output
|
- Built-in Auto Antenna Tuner
- TCXO Built In
- 100% Duty Cycle
- Built in RTTY Demod
- DSP Notch
- 1 Hz Readout
- Memory Keyer
- RF Attenuator 6/12/18 dB
- Automatic Notch
|
|
Improvements
|
- Improved Sensitivity
- Improved Third Order Intercept Point
- Selectable CW/SSB Filter Shape
- Noise Reduction Control
- Noise Blanker Level Control
- Lower floor noise level in band scope
- Improved receive fidelity
- DCV operation with band scope
- External Control of Keyer
|
- Improved contrast on labels
- Higher quality display
- More display background colors
- Independent digital and voice mode filter settings
- Disable of compression in digital modes
- Improvement of low-level volume control
- Fast RIT Clear
- SSB/CW Synchronous Tuning
|
Options | Options with Photos
| Order # |
Item |
Description |
| #2606 |
AH-2b |
Mobile HF antenna will cover all bands from 7-54 MHz when used
with the AH-4. 8.2 Feet (2.5 m). |
| #3702 |
AH-4 |
Automatic antenna tuner 120 watts, 80 to 6 meters.
|
| #2771 |
CT-17 |
CI-V Level Converter for transceiver control using a PC. |
| #1951 |
HM-36 |
Hand mic (as supplied). |
| #2694 |
PS-125 |
Switching Power Supply. 25 Amp.
|
| #2470 |
SM- 6 |
Desk microphone with flexible neck. |
| #2561 |
SM-20 |
Unidirectional, electret Up/Down desktop microphone with low cut
function. |
| #1672 |
SP-20 |
External Speaker with 4 audio filters, headphone jack and input
for two transceivers. 8 Ohms. |
| #1473 |
SP-21 |
External Speaker. 8 Ohms. Style and size matches 756ProII. |
| #3437 |
UT-102 |
Voice Synthesizer announces frequency and mode. |
|
