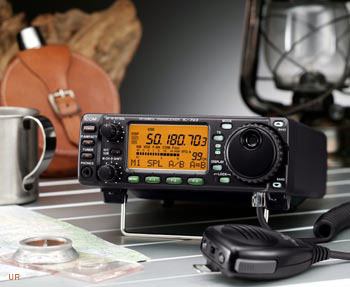

The recently announced ICOM 703 all-mode transceiver promises
efficient QRP operation on HF and 6 meters. Output can be set for 10,
5, 2.5, 1 or 0.5 watts. Energy conservation is realized by lowering the
power source voltage to 6 VDC. Many features, usually extra charge, are
built-in including: automatic antenna tuner, AF DSP, Memory keyer and
TCXO.
Other features include IF shift, AF speech compressor, band scope, and
SWR indication. This new radio is expected in early 2003. More details
will be added as they become available. Special note: 6 meter coverage
is unconfirmed.
This device has not been approved by the
F.C.C. This device may not be offered for sale or lease or be sold
or leased until approval of the F.C.C. has been obtained. The above information
is very preliminary and may be subject to change without notice or obligation.
Specifications
|
Features
|
- .03-54 MHz Receive
- Alpha memories
- RIT
- Preamp/ATT
- VFO A/B
- 1 Hz Display
- IF Shift
- Scanning
- S/RF Meter
|
- 10 Watts
- Antenna Tuner
- 105 Memories
- All band Multimode
- Removable head
- Preamp/RF Atten.
- Mini Spectrum Scope
- Electronic Keyer
- Backlit Keys
|
Options | Options with Photos
| Order # |
Item |
Description |
| #2606 |
AH-2b |
Mobile antenna. Can be matched for 40 to 6 meters using AH-4. |
| #3702 |
AH-4 |
Automatic antenna tuner 120 watts, 80 to 6 meters.
|
| #3438 |
AT-180 |
HF +6M Automatic Tuner.
|
| #2771 |
CT-17 |
CI-V Level Converter. |
| #0903 |
FL- 52A |
Filter 500 Hz CW/RTTY-narrow (455 kHz IF). |
| #0909 |
FL- 53A |
Filter 250 Hz CW-narrow (455 kHz IF). |
| #0327 |
FL-222 |
Filter 1.9 kHz SSB-narrow (455 kHz IF). |
| #3288 |
FL-257 |
Filter 3.3 kHz SSB-narrow (455 kHz IF). |
| #3430 |
HM-103 |
Electret condenser Up-Down hand mic. Mod plug. |
| #3431 |
MB-62 |
Mobile Mounting Bracket for 703 or AT-180. |
| #3432 |
MB-63 |
Mobile Mounting Bracket for detached Front Panel. |
| #2340 |
MB-65 |
Mobile Mounting Bracket for Front Panel [Requires MB-63]. |
| #1178 |
MB-72 |
Carry Handle. |
| #3434 |
OPC-581 |
Front Panel Separation Cable 11 ft (3.5 m). |
| #3435 |
OPC-587 |
Front Panel Separation Cable 16 ft (5.0 m). |
| #1120 |
OPC-589 |
Mic adapter cable (8 pin to modular). |
| #3436 |
OPC-599 |
7+8 to 13 Pin Accessory Cable Adapter. |
| #1866 |
SP-10 |
External Mobile Speaker. |
| #2561 |
SM-20 |
Desk Mic with Up-Down Buttons. [Requires OPC-589] |
| #3437 |
UT-102 |
Voice Synthesizer announces frequency and mode. |
| #3097 |
UT-106 |
DSP-Digital Signal Processing Option. |
|
