The Regenerative
Circuit
-
- After using the
crystal set for a few months, I began expermenting with
vacuum tubes. I had read in some radio books about the
regenerative circuit and about its increased sensitivity
to radio signals. The one tube regenerative receiver
seemed to be a good place to start. I had used a vacuum
tube as a detector but its sensitivity left something to
be desired. From my junk box, I hooked up the
regenerative, circuit shown below and was amazed at the
results. At night on the broadcast band, I could get a
different station every ten kilocycles over the whole

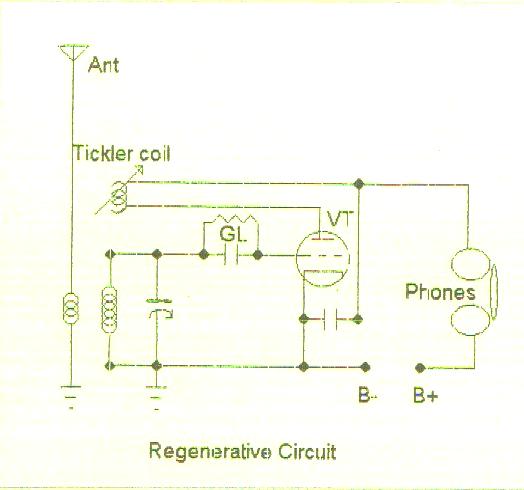

tuning range of the capacitor. The schematic of the one
tube regenerative receiver is shown below.
