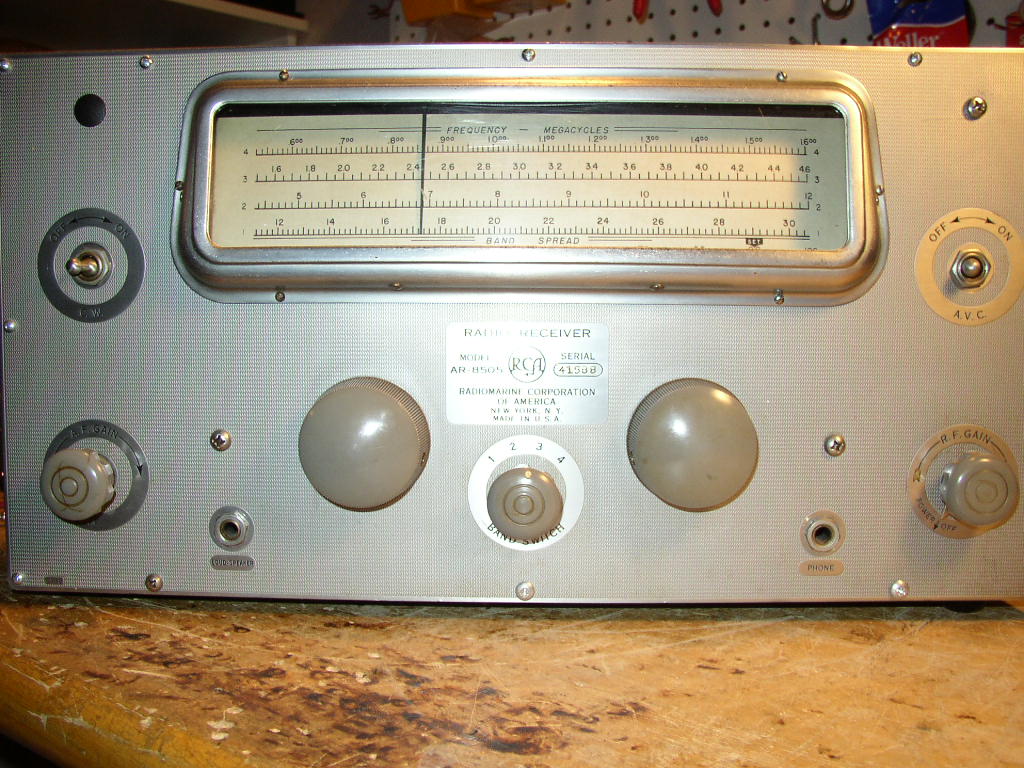

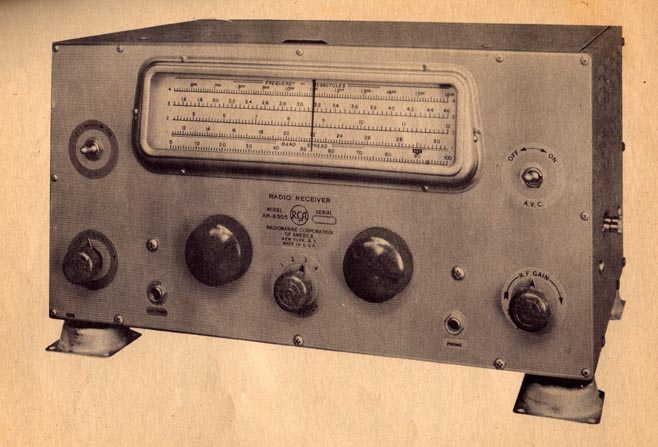

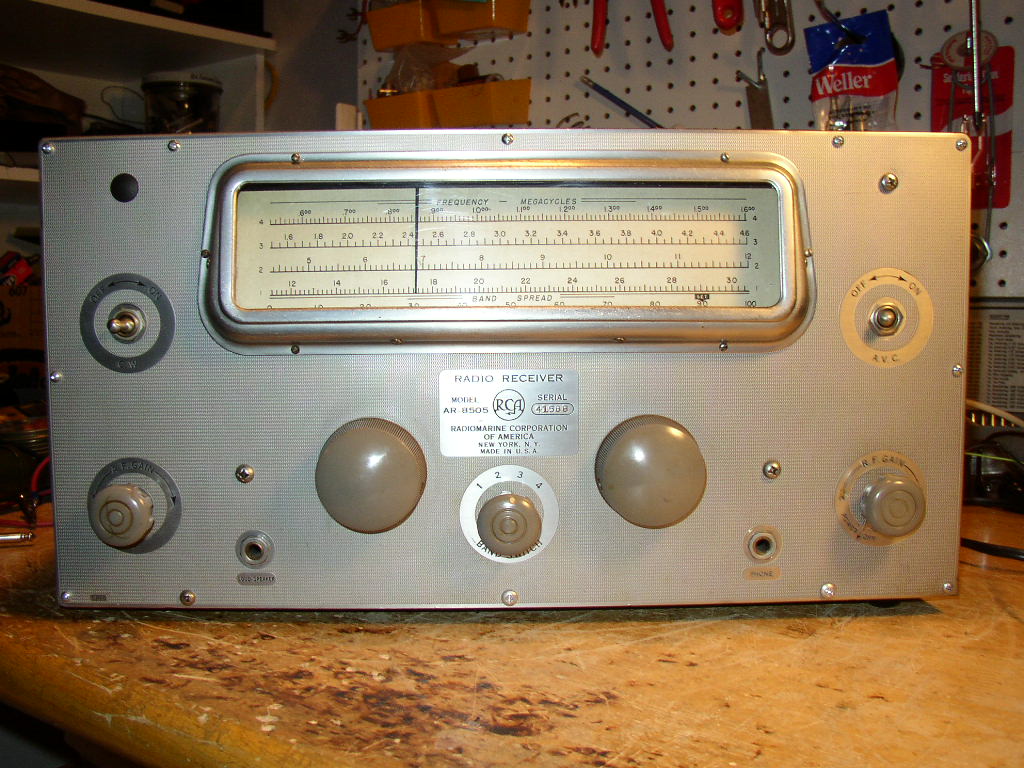

"The model AR-8505 radio receiver is a 7-tube superheterodyne designed primarily for marine services for high-frequency reception. The receiver covers a continuous frequency range from 540 to 30,000 kilocycles. No plug-in coils are required since any frequency within range specified may be quickly obtained by means of panel controls."
The receiver is 10" high, 17 3/4" wide and 12 1/4" deep. It weighs 33 lbs.
Tube lineup:
6K8 mixer/oscillator
6L7 first IF
6L7 second IF
6SQ7 second detector, first audio, and AVC
25L6 second audio
6J7 CW oscillator
25Z5 rectifier
It is designed for a balanced antenna, and has two insulated binding posts for connection to a "standard marine-type doublet antenna".
It is an AC/DC receiver.
