80 Meter Tiny Tornado



The Tiny Tornado is an improved and modified Pixie, designed by Brice. D. Hornback, KA8MAV. It is built according to Brice's Rev. 2b schematic with the exception of a different sort of T/R switch and a sidetone oscillator. I call it the "Ugly Tornado." It puts out about 400mW at 9 volts.

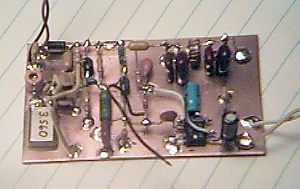

The Ugly Tornado finished board.

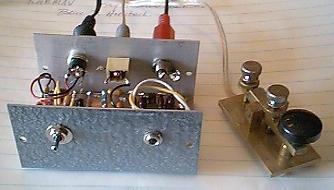

Inside the enclosure.
Beside my tiny key for size comparison.
