Radio Merit Badge

Notes to help make this merit badge a little easier

By AA6J Bill Jeffrey
Assistant Scoutmaster and Merit Badge Counselor

3. Where do I tune the radio to find what I want?

Do the following:

a. Draw a chart of the electromagnetic spectrum covering 100 kilohertz (kHz) to 1,000 megahertz (MHz).
b. Label the LF, MF, HF, VHF, UHF, and microwave portions of the spectrum on your diagram.

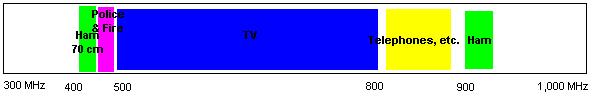

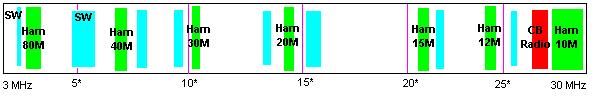

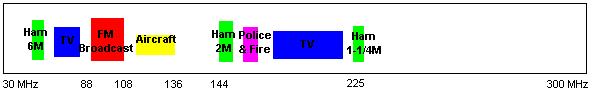

c. Locate on your chart at least eight radio services, such as AM and FM commercial broadcast, citizens band (CB), television, amateur radio (at least four ham radio bands), and police.

This all sounds and looks a lot harder than it is. First let's explain some of these words, then we'll look at a chart which is a lot simpler than the one in the merit badge book.

The electromagnetic spectrum can be shown on a chart which shows what different frequencies are. For example, you can hear from 20 hertz (Hz) to 20,000 Hz (which is 20 kHz). Remember from math and science that kilo means 1,000 and mega means 1 million. When you tune your boombox to AM you are tuning in kHz, for example, 1000 kHz. FM is in MHz, for example, 100 MHz. Therefore, FM is actually higher even though the number on your dial is smaller.

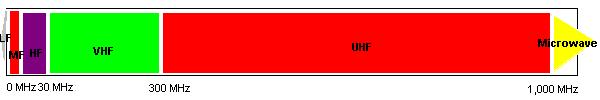

Requirement (b) is asking about very wide ranges of the radio spectrum.

LF Low Frequency 30 kHz to 300 kHz
MF Medium Frequency 0.3 MHz to 3 MHz

HF High Frequency 3 MHz to 30 MHz

VHF Very High Frequency 30 MHz to 300 MHz

UHF Ultra High Frequency 300 MHz to 3,000 MHz

Microwave Microwave 1,000 MHz up

You can see that your AM radio is LF and your FM radio is VHF.

d. Discuss why some radio stations are called DX and others are called local.

DX: Distant (not local, usually means out of the country).
Local
: Closer, therefore more common usually.

Explain what the FCC and the ITU are.

FCC: Federal Communications Commission, sets rules in US.
ITU
: International Telecommunications Union - Sets band plans internationally.

These notes are designed to help the Scout earn a merit badge that sometimes can seem a bit difficult. They are not intended to replace the Radio Merit Badge book.You will still need to meet with a merit badge counselor.

3Links about this requirement below:

Copyright Bill Jeffrey 2000-2001. Rights to reproduce and use for nonprofit purposes given.
Please do not copy this material to another web page. Thank you.
