EQUIPMENT for DIGITAL MODE & SSTV |
|
|
|
PC: P-IV-2,4GHz/RAM-512MB/HDD-120GB DIGITAL MODE - SSTV Interface (homemade) Transceiver: TS-930S - Kenwood |
|
|
|
|

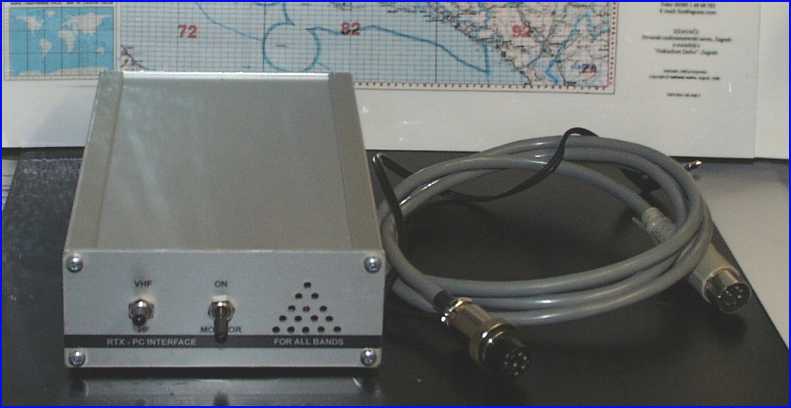

Interface DIGITAL MODE - SSTV |
El. schematic for Interface DIGITAL MODE - SSTV |
|

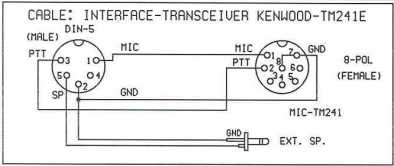

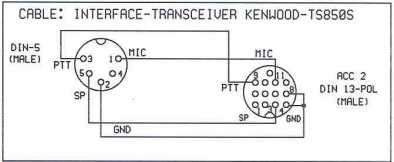

El. schematic for cable : DIGITAL MODE-SSTV INTERFACE - TRANSCEIVER |
|
|
Recommended HF Digital and SSTV Operating Frequencies in Region 1 IARU |
 |
||
| BAND | DIGITAL MODE | SSTV |
| 160 m | 1,838 - 1,840 MHz | 1,840 MHz |
| 80 m | 3,580 - 3,590 MHz | 3,730 - 3,740 MHz |
| 40 m | 7,035 - 7,040 MHz | 7,040 - 7,045 MHz |
| 30 m | 10,140 - 10,150 MHz | 10,125 MHz |
| 20 m | 14,070 - 14,089 MHz | 14,230 MHz |
| 17 m | 18,100 - 18,109 MHz | - |
| 15 m | 21,080 - 21,100 MHz | 21,340 MHz |
| 12 m | 24,920 - 24,929 MHz | - |
| 10 m | 28,050 - 28,120 MHz | 28,680 MHz |
| 6 m | 50,620 - 50,750 MHz | 50,510 MHz |
| 2 m | 144,800 - 144,990 MHz | 144,500 MHz |
|
